FEATURES

PERFORMANCE

• Primed wood frame: 137 mm (5 3/8”) or
168 mm (6 5/8”) or 184 mm (7 ¼”)
• PVC capped exterior frame
• Low-E glass
• White handle with lever lock
• Security bar
• PVC interior capped sill
• Tandem ball bearing rollers

	Min			Max
Air tight	A1	A2	A3
Water tight	B1	B2	B3	B4
Rigid structure	C1	C2	C3
Ease of operation	E1	E2	E3
Forced entry resistance	F1	F2


Security bar	White Handle with Lever Lock	Please check if your door configuration is Energy Star certified for your region here

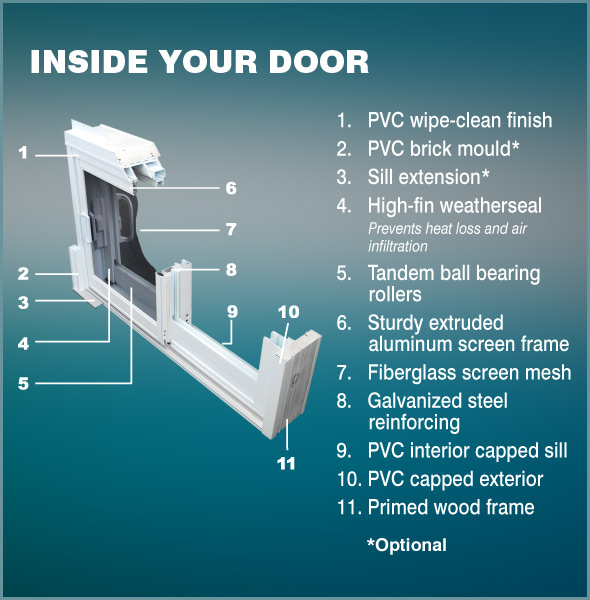

INSIDE YOUR DOOR

Click the thumbnail below for an enlarged view.

1. PVC wipe-clean finish
2. PVC brick mould*
3. Sill extension*
4. High-fin weatherseal Prevents
heat loss and air infiltration
5. Tandem ball bearing
rollers

6. Sturdy extruded aluminum
screen frame
7. Fiberglass screen mesh
8. Galvanized steel reinforcing
9. PVC interior capped sill
10. PVC capped exterior
11. Primed wood frame
* optional

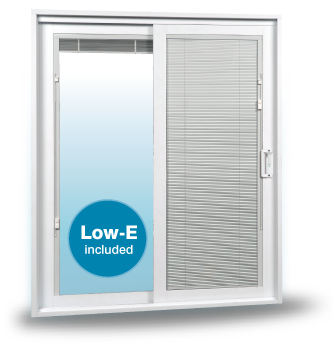

OPEN, CLOSE, RAISE or LOWER IT!

Adjust the amount of light that enters your home with internal blinds. You can open, close, raise or lower your blinds to choose between a full clear view and complete privacy. Best of all, since the blinds sealed between two glass panes, you never have to dust them!

Raise / Lower

Tilt open / Close

GRILL OPTIONS

			¹ Available in white, sandstone or tan ² Available in pewter, white, or brass
Rectangular¹	Georgian¹	Slimline²

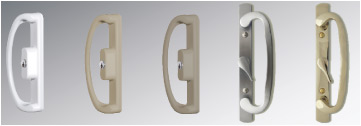

HARDWARE OPTIONS

One-point mortise handles with keylock

White* Tan Sandstone Brushed Brass-
chrome plated†

† Also available in solid brass (with PVD tarnish resistant finish)
* Keylock optional on white handle only

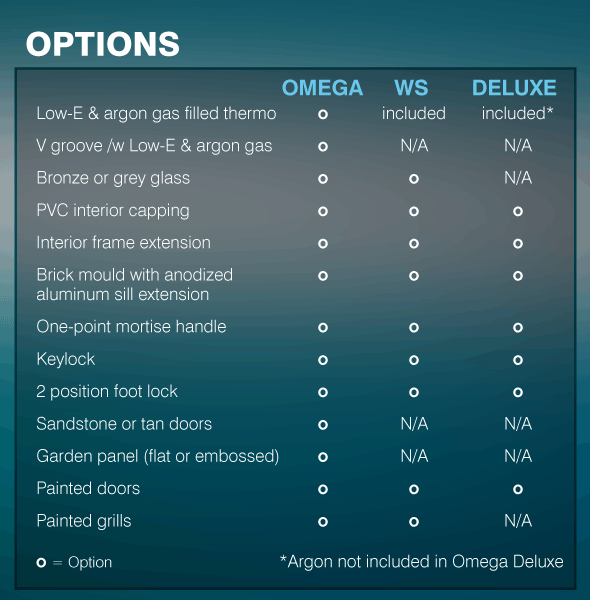

Other available options
• PVC interior capping • Interior frame extension • Brick mould with anodized aluminum sill extension • One-point mortise handle with keylock	• Keylock • 2-position foot lock • Painted doors

SIZES

Code	Tip to Tip (2 Panels)	Rough Opening
5068 5061 6068 6061	1508 mm (59 3/8”) X 2011 mm (79 3/16”) 1508 mm (59 3/8”) X 2062 mm (81 3/16”) 1788 mm (70 3/8”) X 2011 mm (79 3/16”) 1788 mm (70 3/8”) X 2062 mm (81 3/16”)	1527 mm (60 1/8”) X 2021 mm (79 9/16”) 1527 mm (60 1/8”) X 2072 mm (81 9/16”) 1807 mm (71 1/8”) X 2021 mm (79 9/16”) 1807 mm (71 1/8”) X 2072 mm (81 9/16”)
Non standard sizes available.

GUARANTEES

20 YEARS on insulated glass failure (for Omega and Omega WS)
10 YEARS against spontaneous glass breakage (Inside glass only for Omega and Omega WS)
10 YEARS on PVC
10 YEARS against mechanism and seal failure on the internal blinds
